CCT Tunable White COB LED 75W 2800K-6000K 3Step Binning Variable White COB CRI90 with Solderless Holder

Name: CCT Tunable White COB LED 75W 2800K6000K 3Step Binning Variable White COB CRI90 with Solderless Holder
Brand: TYANSHINE
Price: 1 USD

Buy cheap CCT Tunable White COB LED 75W 2800K-6000K 3Step Binning Variable White COB CRI90 with Solderless Holder product

Brand Name : TYANSHINE

Model Number : TX-2832SW21A-2860V36-02H90

Certification : RoHS, LM-80

Place of Origin : CHINA

MOQ : 50pcs

Price : USD

Payment Terms : T/T

Supply Ability : 100000pcs per month

Delivery Time : 7-10 days

Packaging Details : Plastic tray

Power : 75W

Voltage : 36V

Current : 2100mA

CCT : 2800K-6000K

CRI : 90

Binning : 3SDCM

Assembling : Solderness Holder

Contact Now

CCT Tunable White COB LED 75W 2800K-6000K 3Step Binning Variable White COB CRI90 with Solderless Holder

Key Features:

Double Phosphor coating technology, excellent color-mixing;
Mac-Adam Ellipse 3 Step binning, high color consistency;
High light quality and efficiency, anti-glare;
Fast thermal conductivity Aluminum PCB, lower thermal resistance;
Solderness Holder, easy to assemble.

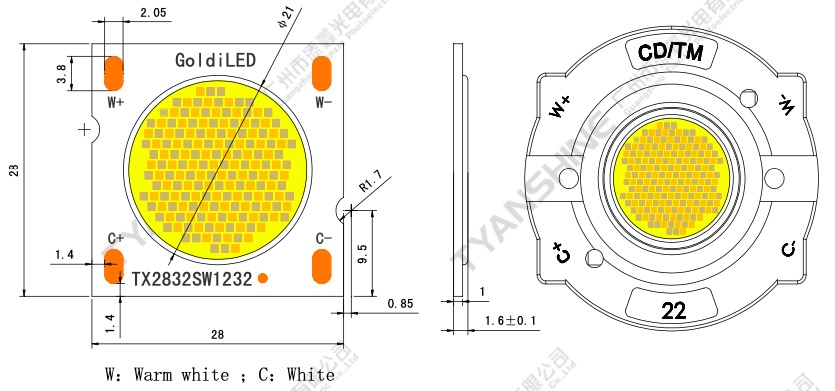

Specification:

CCT Tunable White COB LED 75W 2800K-6000K 3Step Binning Variable White COB CRI90 with Solderless Holder

CCT	Current	Power	Voltage	CRI	R9	Brightness	Efficiency	LES
2780-2900K	950-2100mA	30-75W	32-36V	90	≥40	3250lm±10%	105±10%	Φ21mm

5750-6000K						3900lm±10%	125±10%

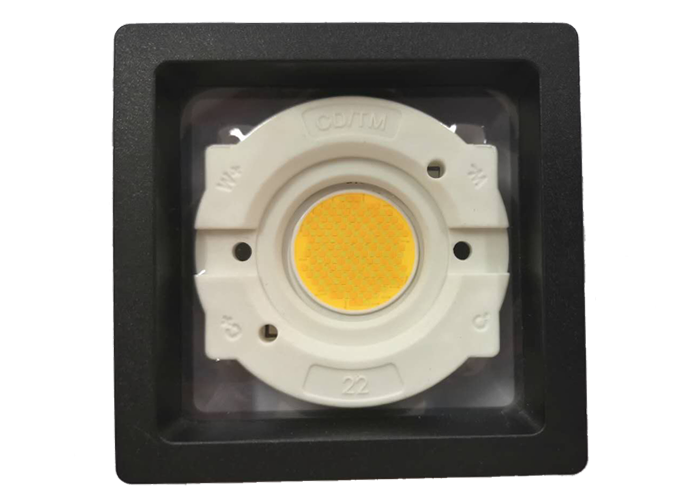

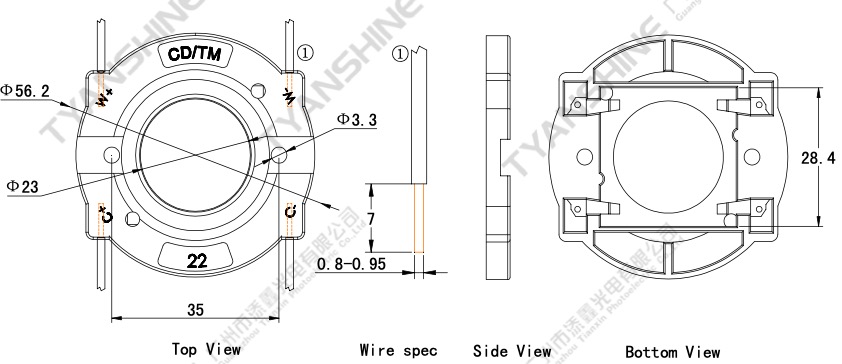

Solderless Holder:

CCT Tunable White COB LED 75W 2800K-6000K 3Step Binning Variable White COB CRI90 with Solderless Holder

CIE Binning:

CCT Tunable White COB LED 75W 2800K-6000K 3Step Binning Variable White COB CRI90 with Solderless Holder Images
