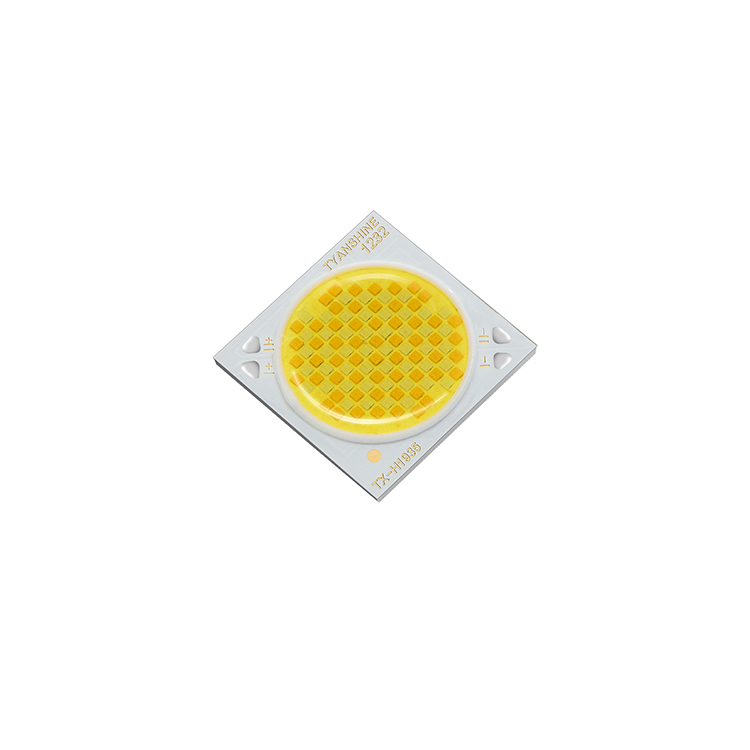

50Watt COB LED Module 2700K-6500K Tunable White 95CRI Smart Lighting LED COB

50Watt COB LED Module 2700K-6500K Tunable White 95CRI Smart Lighting LED COB

Features:

• Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;

• Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;

• Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%

• Compatible with the housing / reflectors and Lenses / holders of the CREE XLamp CXA (1304-1310)(1507-1512)(1820-1830)(2530-2540)

Advantages VS Disadvantages:

TYANSHINE Tuneable White COB	Other Brands' Tuneable COB
1, Cross-distribution for the White and WarmWhite LED Dies;   2, Better performance of Color-mixing, without light strips or shadows;   3, Easy to adapt Lenses or reflectors	1, Strip arrays or Circular distribution of LED Dies;   2, Ununiformity of color-mixing, will be projected light strips or shadows;   3, Strictly requirements for Lenses/Relfectors

Specification:

(W - White, S - WarmWhite) , Ta = 25℃

Applications:

Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Photography lighting Fresnels lights

Housing / Lens / Holder Competitable with:

TX-1308	XLamp CXA 1304-1310	CLL022	-
TX-1512	XLamp CXA 1507-1512	-	-
TX-1824	XLamp CXA 1820-1830	CLL032	Tiger Zenigata GW6TGCBG4FD
TX-2548	XLamp CXA 2530-2540	-	-
